Beware ! You're in Kamikazie here. Not many pro luthiers around, more often brave souls experimenting in their kitchen.

Silvertone 615 restore project - by George

(At the end of this page, another project, a Silvertone made in Italy (non Harmony).)

George Martin : I'm sending some photos, of a butchered guitar, a Silvertone with a Harmony serial number (4373H615). I attempted to clean up & make presentable/playable.

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

It was more difficult as someone inexperienced went out of control, with the wrong glues.

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

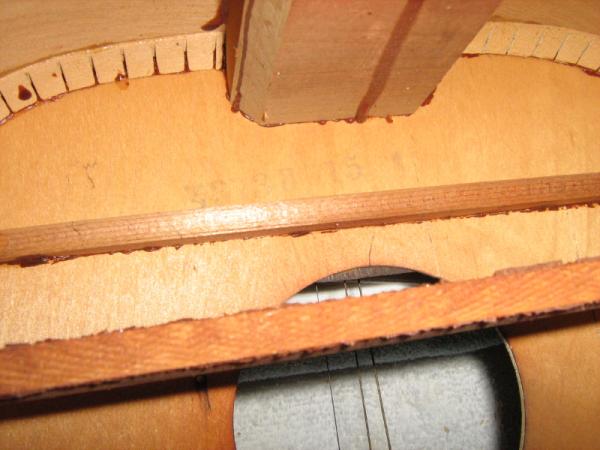

Sanded old glues off & continued brace work

Silvertone lutherie

Silvertone lutherie

Clean up & begin back brace setting

Silvertone lutherie

Sub assembly process : Begin gluing & clamping tops & tuners clean up

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Continued gluing & clamping, a few inches at a time

Silvertone lutherie

Slowly coming together... Inch by inch... matching top & back to side edges

Silvertone lutherie

Basic Assembly near finish. Assembled & drying a few days

Silvertone lutherie

Touch up finishing and setbacks. Not going so well, but closure is near, this repair was plagued with 5 setbacks for every single forward move...trying to seal/stain, the water damaged crack on the back lower bout

Silvertone lutherie

The finish never will look 100%... Finishing is an art in itself, this will never match the manufacturers appearance, but it will have to do, at least that large crack, is closed & water damaged area reinforced

Silvertone lutherie

Back from the lost ! I had to make an alternative bridge, to make playable & strung up salvage, took way more time than it's value, i'd imagine, but all this was done, inch by inch, hour by hour, to save a part of the past

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Up next, a tortured little Silvertone made in Italy...

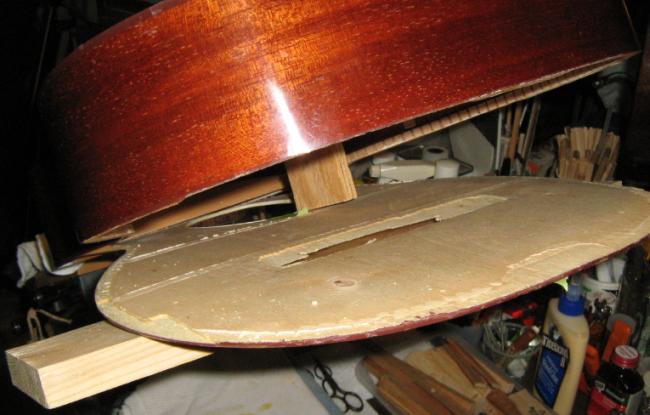

Crushed in bridge, caved in top, brace separation, & top literally peeled back...

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Italian Silvertone in progress... While the top has been already peeled back, time to reinforce the bridge area & re-glue all separated braces...

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie


final gluing & clamping of the this very nice abused little Italian made guitar :

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

Silvertone lutherie

George Martin, Pennsauken, New Jersey

february 2008
